Zebra MC9300 Mobile Computers

To Buy or See Price, visit our E-Commerce store
BARCODEsavings.com

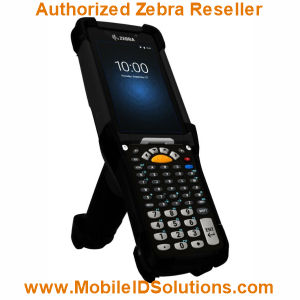

The Zebra MC9300 handheld computer is the latest model in Zebra’s successful MC9000 series of mobile computers. Long the gold standard for logistic applications, the MC9300 maintains its leadership position and is our top recommendation for a rugged handheld computer for use in warehouses and distribution centers where a keyboard is required. The MC9300 mobile computer is only available in a gun form factor, but has a cold storage (condensation resistant) option.

The MC9300 features a new battery which allows it to run twice as long as the MC9200 on a single charge. Operational performance (uptime) can be improved with the new Zebra charging cradles that have a fast charging feature enabling batteries to have a 90% charge in fours or less. In addition to optional front and back cameras, the MC9300 has eight times the RAM and 16 times the Flash memory of the MC9200 to deliver outstanding performance. As you would expect from Zebra’s “best” handheld computer, the MC9300 has superior barcode scanning capabilities and is able to scan barcodes as close as 3 inches to as far as 70 feet away.

KEY FEATURES
• Successor to MC9200
• 4.3-inch 800×480 WVGA Color Touch Display (Corning Gorilla Glass)
• 2.2 GHz Qualcomm 64-bit Snapdragon 660 Octa-core Processor
• 4 Scanner Options (1D Laser, Standard Range 1D/2D Imager, Extended Range 1D/2D Imager and DPM Imager)
• Rugged with 8 ft drop rating and IP67/IP65 seal
• PowerPrecision+ 7000 mAH Li-Ion batteries (hot swap)
• Android 8.1 (Oreo) with Zebra Mobility Extensions
• Cold Storage Option

PHYSICAL CHARACTERISTICS

• Dimensions: 9.4 in. L x 3.5 in. W x 7.4 in. H
240 mm L x 88 mm W x 189 mm H
• Weight: 26.9 oz./765g with battery
• Display: 4.3inch WVGA (800 x 480), color display
• Imager Window: Corning Gorilla Glass
• Touch Panel: Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model).
• Backlight: LED backlit display
• Power: Rechargeable Li-Ion: 3.6V, 7000mAh, (Cold Storage Capacity battery — 5000mAh)
Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence
• Expansion Slot: User accessible MicroSD with 32GB SDHC and up to 256GB SDXC
• Network Connections: USB 2.0 High Speed (Host & Client), WLAN and WPAN (Bluetooth)
• Notifications: Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback
• Keypad: Backlit, Field replaceable keypads; 58 Key Alpha-Numeric, 53 Key Alpha-Numeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key, 34 Key Numeric/Function, 29 Key Numeric/Calculation
• Voice and Audio: Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support)

PERFORMANCE CHARACTERISTIC

• CPU: Qualcomm Snapdragon 660 octa-core, 2.2 GHz
• Operating System: Android 8.1 Oreo with Zebra’s Restricted Mode for control over GMS and other services
• Memory: 4 GB RAM/32 GB Flash pSLC

USER ENVIRONMENT

• Operating Temp: Standard: -4°F to 122°F/-20°C to +50°C
Cold Storage: -22°F to 122°F/-30°C to +50°C
• Storage Temp: -40°F to 158°F/-40°C to 70°C
• Humidity: Standard: 5% to 95%, non-condensing;
Cold Storage: 5% to 95%, condensing (Condensation-free model with integrated heaters)
• Drop Specification: Multiple 8ft. (2.4m) drops per MIL-STD-810G at room temperature; Multiple 6ft. (1.8m) drops to concrete across the operating temp. range
• Tumble Specification: 2000 3.2 ft. (1m) tumbles (4000 hits); meets and exceeds IEC tumble specifications
• Sealing: IP67 and IP65 per applicable IEC sealing specifications
• Vibration: 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis
• Thermal Shock: -40°F to 158°F (-40° C to 70°C) rapid transition
• Electrostatic Discharge (ESD): ± 15kVdc air discharge; ± 8kVdc direct discharge; ± 8kVdc indirect discharge

DATA CAPTURE

• Scanning: SE965:2 1D standard range scan engine
SE4750 SR: Standard range omnidirectional 1D/2D imaging engine
SE4750 DP:3 Direct Part Marking (DPM) imaging engine
SE4850: Extended range 1D/2D imaging engine
• Camera: Front: 5MP fixed focus, 2.0 aperture
Rear: 13MP autofocus, 2.2 aperture, flash LED generates balanced white light, support torch mode, supports rear camera barcode scanning
• NFC: Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support

Wireless LAN

• Radio: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2×2 MU-MIMO
• Data Rates: 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
• Operating Channels: Channel 1-13 (2412-2472 MHz); Chan 36-165 (5180-5825 MHz)
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
Security & Encryption: WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/WPA2 Enterprise (TKIP and AES) – EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD
FIPS 140-2 Level 1: Data in Motion and Data at Rest
• Multimedia: Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC)
• Certifications: WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, Wi-Fi Direct and WPS 2.0)
• Fast Roam: PMKID caching; Cisco CCKM; 802.11r; OKC
