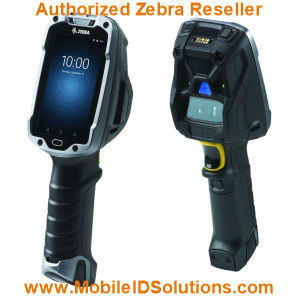

The Zebra TC8300 Android handheld computer replaces the TC8000 model with updated (improved) hardware for faster processing, latest Wi-Fi and Bluetooth technologies, and support for Android 8.1 (Oreo).
We recommend the TC8300 for warehouse applications with its innovative ergonomic design that helps increase productivity by 14% through decreased wrist motion (55%) and muscle effort (15%). The TC8300 also offers superior barcode scanning capability with either the SE4750SR Standard Range or SE4750MR Mid-Range imager (other scan engines are available including an extended range scanner).
The TC83000 can be work on the hip or shoulder strap and features hands-free proximity scanning by either close-up scanning from near contact or from contact.
• Successor to TC8000
• 4.0-inch 800×480 WVGA Color Touch Display 400 NITS (Corning Gorilla Glass)
• 2.2 GHz Qualcomm 64-bit Snapdragon 660 Octa-core Processor
• 5 Scanner Options (1D Laser, Standard Range and Mid-Range 1D/2D Imager, Extended Range 1D/2D Imager and DPM Imager)
• Rugged with 8 ft drop rating and IP65 seal
• PowerPrecision+ 7000 mAH Li-Ion batteries (hot swap)
• Android 8.1 (Oreo) with Zebra Mobility Extensions
PHYSICAL CHARACTERISTICS
• Dimensions: 9.17 in. L x 2.99 in. W x 2.52 in. D
233 mm L x 76 mm W x 64 mm D
• Weight: Base: 17.2 oz./490 g; Package 1: 17.6 oz./500 g
• Display: 800 x 480 pixels; 4.0 in. diagonal; transflective LCD display; 16.7 Million (24-bit) color support; 400 NITs
• Touch Panel: Multi-touch projected capacitive; fingertip (bare or gloved) input; conductive stylus supported (sold separately); Corning® Gorilla® Glass
• Power: PowerPrecision+ Lithium ion 7000 mAh with hot swap battery backup
• Notifications: Audible tone, multi-color LEDs, vibration
• Keypad: On-screen keypad
• Voice and Audio: Dual speakers, Bluetooth wireless headset support
PERFORMANCE CHARACTERISTIC
• CPU: Qualcomm Snapdragon 660 octa-core 2.2 GHz
• Operating System: Android 8.1 Oreo with Zebra’s Restricted Mode for control over GMS and other services
• Memory: Base, Condensation Resistant, DPM* and Package
1 models: 4GB RAM/32 GB Flash pSLC Package 2 models*: 8 GB RAM/128 GB 3D TLC Flash (* Available Q3 2019)
• Storage: SDXC compliant micro SD card slot
• App Development: EMDK available through Zebra Support Central Web site
USER ENVIRONMENT
• Operating Temp: -4° F to 122° F/C20-20° C to 50° C
• Storage Temp: -40° F to 158° F/-40° C to 70° C
• Humidity: 5% – 95% non condensing (condensing resistant optional)
• Drop Specification: Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G; multiple 6 ft./1.8 m drop to concrete across full operating temperature range
• Tumble Specification: 2,000 3.28 ft./1 m tumbles
• Sealing: IP65
• Vibration: 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz)
• Thermal Shock: -40° F to 158° F/-40° C to 70° C rapid transition
• Electrostatic Discharge (ESD): ±20kVdc air discharge; ±10kVdc direct discharge; ±10kVdc indirect discharge
• Scanner Window: Corning® Gorilla® Glass
DATA CAPTURE
• Scanning: SE965: 1D standard range scan engine
SE4750 SR or MR: Standard or medium range omnidirectional 1D/2D imaging engine
SE4850 ER: Extended range 1D/2D imaging engine
SE4750 DP: Direct Part Marking (DPM) imaging engine (available Q3 2019)
• Camera: 13MP rear facing autofocus, f/2.4 aperture (optional)
• NFC: Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support (optional)
Wireless LAN
• Radio:
IEEE 802.11a/b/g/n/ac/d/h/i/r/k/w; 2×2 MU-MIMO
• Data Rates: 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
• Operating Channels: Chan 36 – 165 (5180 – 5825 MHz); Chan 1 – 13 (2412 – 2472 MHz); Actual operating channels/frequencies depend on regulatory rules and certification agency
• Security & Encryption: WEP, WPA – TKIP, WPA2- TKIP, WPA2-TKIP AES EAP TTLS, PAP, MSCHAP, MSCHAP v2, PEAPv0-MSCHAPv2, PEAPv1- EAP-GTC, EAP-TLS, EAP-FAST, LEAP
• Multimedia: Wi-Fi Multimedia™ (WMM)
• Certifications:
WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, Wi-Fi Direct and WPS 2.0)
• Fast Roam: PMKID caching, Cisco CCKM, OKC, 802.11r
• Network Connections: Bluetooth; USB 2.0 OTG Host docking interface; 802.11r and 802.11k for enterprise voice roaming included
Wireless PAN
• Bluetooth: Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)
